Assembly Testing Equipment

What is Assembly Testing Equipment? What are some major uses for Assembly Testing Equipment? Why should a custom Assembly Inspection & Testing Machine be implemented in your process?

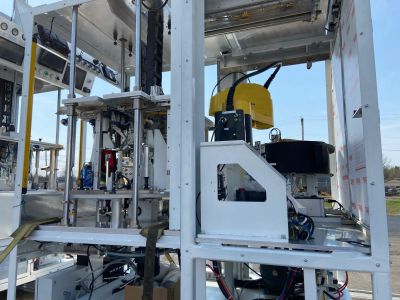

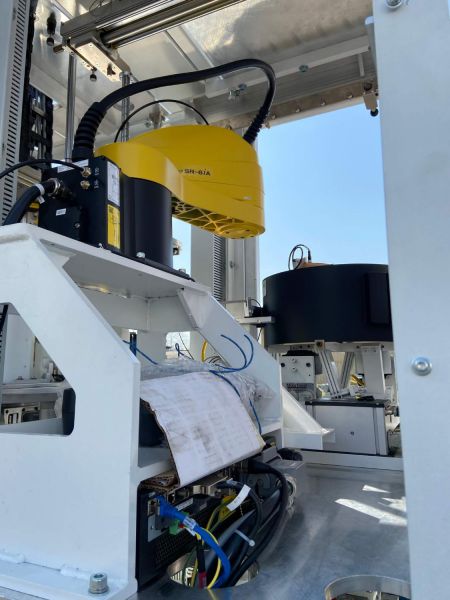

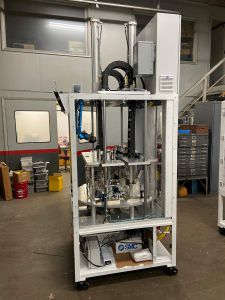

[Pictures of Stryver Built Assembly Testing Equipment below]

Assembly Testing Equipment is machinery built specifically to validate or confirm functionality of a part or an assembly. Custom inspection and testing equipment use off-the-shelf calibrated devices to complete testing, and are built to complete multiple tests in one cohesively designed inspection process. This allows part function to be fully confirmed in one spot, and for the process data to be collected in one operation to minimize the overall amount of inspection data collection and processing required for tracking the process.

Commonly used applications for Assembly Testing Equipment include below:

  1. Pressure & Leak Testing. Used to confirm parts & assemblies are properly sealed to prevent leakage of air or fluid. Typically have to be designed to a specific part type to work properly. Includes pressure decay, pressure leak test gain, vacuum leak testing, mass flow, hydraulic & hydrostatic leak testing, and others.
  2. End of Line Testing. Used to confirm an overall assembly meets all of a customer’s specifications ahead of shipment to the customer. It is the final process before packaging for shipment. Typically checks all electrical & functional callouts per the assembly drawing.
  3. Part Mechanical or Electrical Function Testing. Used to confirm assemblies are properly assembled and function as inspected. Typically designed to inspect multiple aspects of an assembly ahead of further processing.
  4. Weld Integrity Testing. Used to confirm assemblies are properly welded ahead of shipment. Welds can be tested mechanically using destructive means, or by using non-destructive testing with techniques including ultrasonic inspection.
  5. Torque Testing. Used to confirm proper torque ranges were achieved on the fasteners on a part. Functionality is often integrated in with the assembly machine or robotic process used to complete the torquing assembly process

Custom assembly testing equipment makes sense to implement if you build production parts and need to complete the same testing sequence on a regular basis. While off the shelf devices can be purchased and use on their own, integrating them together into a custom testing machine setup allows for a quicker overall inspection process. It also helps with manage part validation & testing data. If 100% part inspection is required, or if it is simply desired to reduce quality claims and rework, a custom assembly testing machine can help ensure every part is built right, in the quickest way possible.

Stryver is the partner you need to build your assembly testing process sized appropriately to your needs. Let us help you reduce quality costs, your scrap rate, and time spent reworking assemblies. Please email your testing needs to This email address is being protected from spambots. You need JavaScript enabled to view it. so we can assess your process and put together a proposal to best handle inspection given your overall inspection rate and process.
